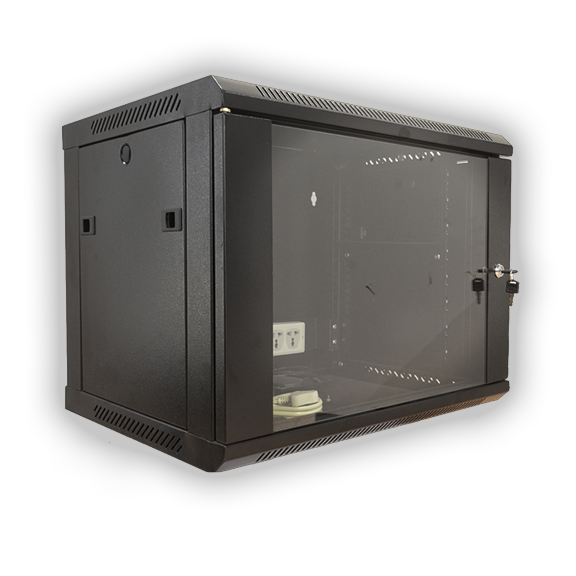

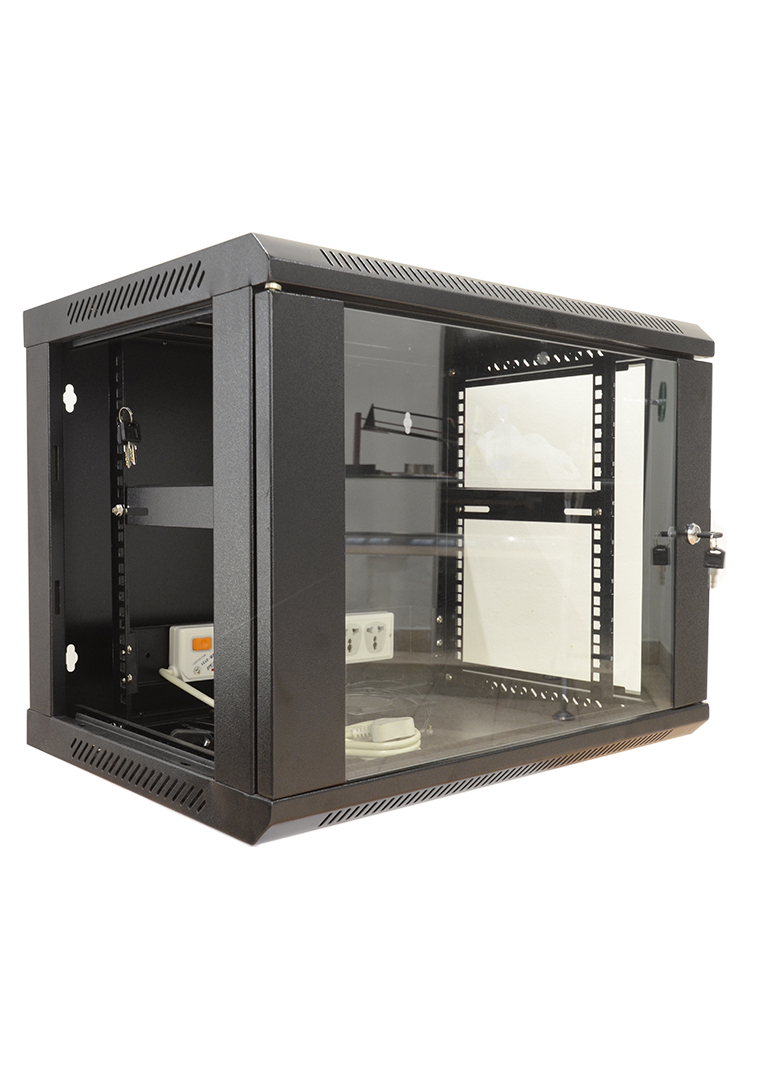

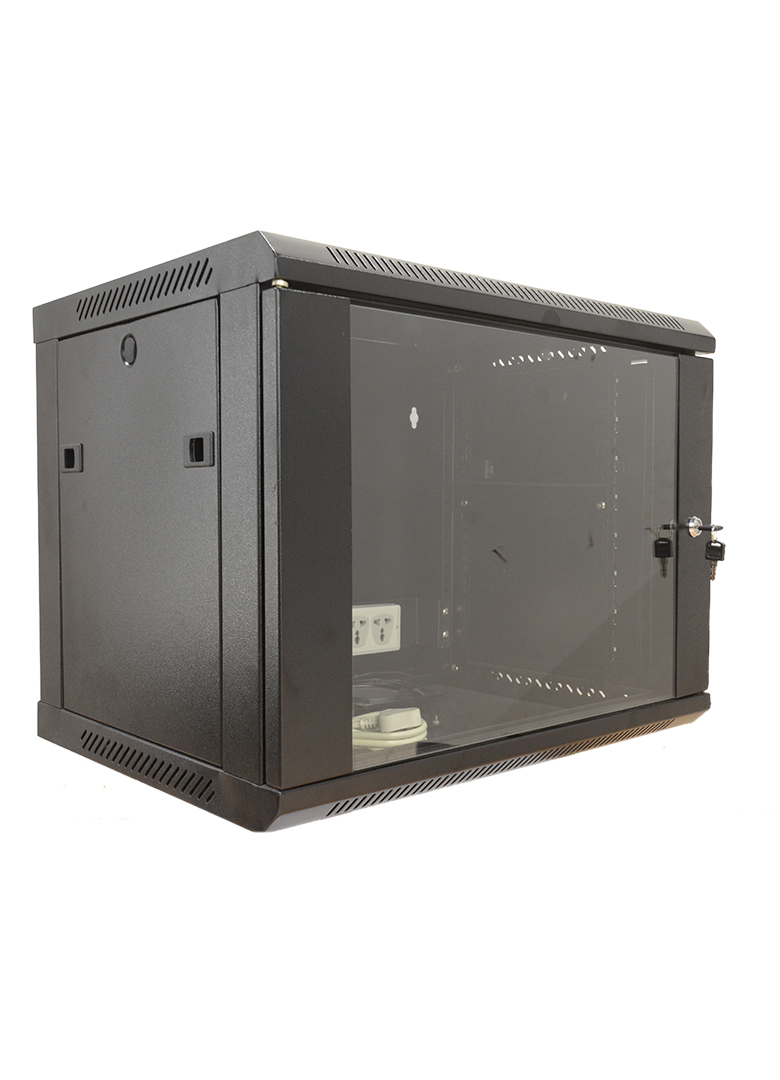

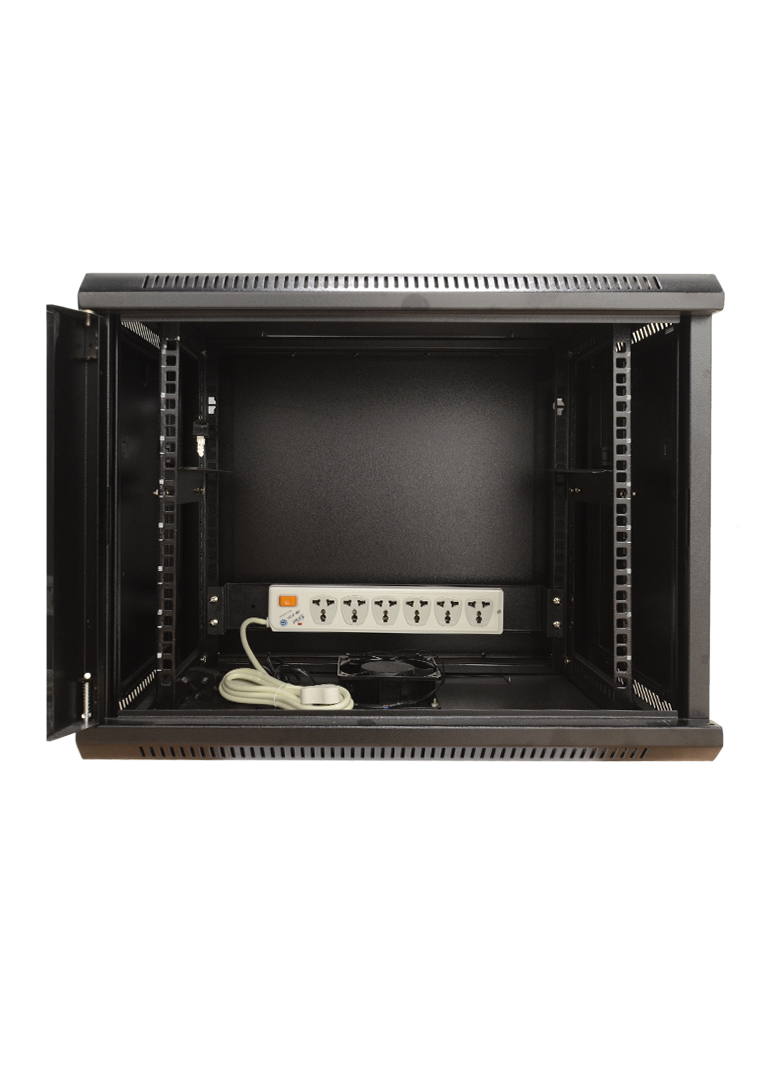

19″ RACK CABINETS – WALL MOUNTED CABINETS

Clear

Description

Feature:

Comply to ANSI/EIAR-310-D, IEC297-2, DIN41491:PART1,

DIN41494:PART7 GB/T3047-92 standards, compatible to 19″international standard, metric system & ETSI standards.

Colour: Black



Specifications

  • Safety glass front door with lock
  • Easy install & removable metal side covers
  • Top & bottom cable entries, and blanking plates.
  • Mounting rail thickness1.5mm, other1.0mm 1U=44.45mm
  • Cooling Fan
  • Fixed shelf
  • 4 Outlet Universal power adaptor sockets
  • SPCC high quality cold rolling steel plate
  • Frame structure, can load up to 60kg

Additional information

19" Rack Cabinets Light Type Wall mounted cabinets

31-06U64/H37xW60xD45/Fan-1/Shelf-0/6U, 31-06U66/H37xW60xD60/Fan-1/Shelf-0/6U, 31-08U64/H47xW60xD45/Fan-1/Shelf-0/8U, 31-10U64/H56xW60xD45/Fan 1/Shelf-1/10U, 31-10U66/H56xW60D60/Fan-1/Shelf-1/10U, 31-12U64/H64.5xW60xD45/Fan-1/Shelf-1/12U, 31-12U66/H64.5xW60xD60/Fan-1/Shelf-1/12U, 31-15U64/H77.5xW60xD45/Fan-1/Shelf-1/15U, 31-15U66/H77.5xW60xD60/Fan-1/Shelf-1/15U, 31-18U64/H91xW60xD45/Fan-1/Shelf-1/18U, 31-18U66/H91xW60xD60/Fan-1/Shelf-1/18U
